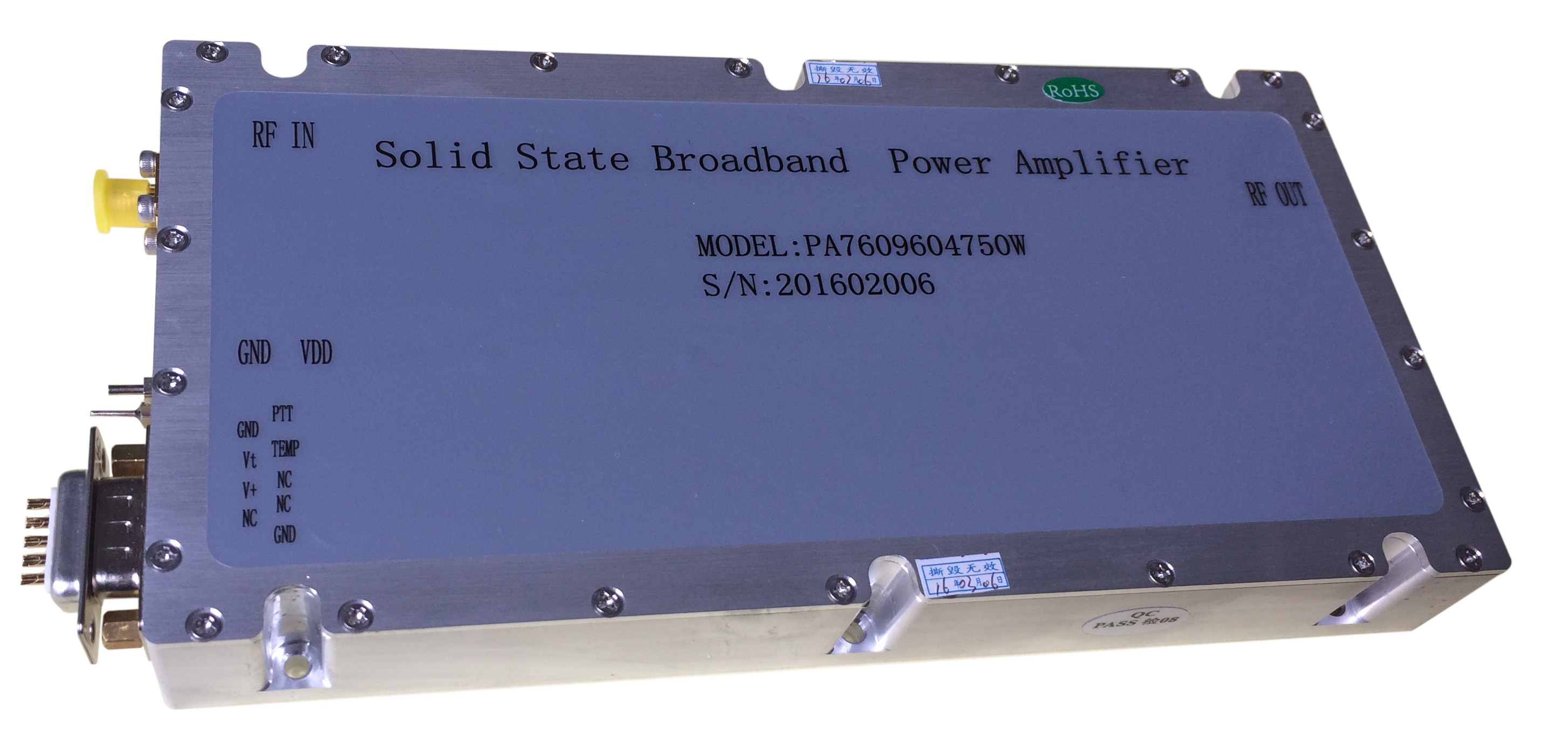

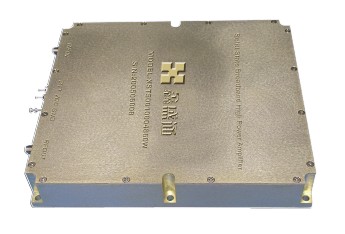

RF&MW Solid State Broadband Power Amplifier Modular

射频&微波固态宽带功放器块（VHF\UHF(30-1300MHz)系列固态宽带功率放大器模块）

序号Serial number	产品型号 Model Number	工作频率BW (MHz)	输出功率 PSat(W)	增益Gain Typ. (dB)	平坦度Flatness(dB)	奇/偶次 Odd/Even(dBc)	效率Eff Typ(%)@ PSat	工作电压Voltage(V)	Photo
1	XSTM20520375W	20-520	5	37	±1.25	12/15	25	12/24
2	XSTM205204010W	20-520	10	40	±1.25	12/15	25	12/24
3	XSTM205204320W	20~520	20	43	±1.25	12/15	30	24/28
4	XSTM205204425W	20~520	30	45	±1.25	11/15	35	24/28
5	XSTM205204640W	20~520	40	46	±1.5	11/15	35	24/28
6	XSTM205204750W	20~520	50	47	±1.5	11/15	35	24/28
7	XSTM2552050100W	25~520	100	50	±1.5	11/15	30	24/28
8	XSTM2552052150W	25~520	150	52	±1.5	11/15	30	28/32
9	XSTM2552053200W	25~520	200	53	±1.5	11/15	30	28/48
10	XSTM2552055300W	25~520	300	55	±1.5	11/15	35	32/48
11	XSTM2552057500W	25~520	500	57	±1.5	11/15	35	32/48
12	XSTM2510004010W	25~1000	10	40	±2.0	11/15	25	24/28
13	XSTM2510004530W	25~1000	30	45	±2.0	11/15	25	28/32
14	XSTM2510004750W	25~1000	50	47	±2.0	12/15	25	28/32
15	XSTM25100050100W	25~1000	100	50	±2.5	12/15	25	28/48
16	XSTM25100053200W	25~1000	200	53	±2.5	12/15	25	28/32
17	XSTM308850100W	30~88	100	50	±1.0	11/15	35	24/28
18	XSTM308853200W	30~88	200	53	±1.0	11/15	35	28/32
19	XSTM308855300W	30~88	300	55	±1.0	11/15	30	28/32
20	XSTM10040050100W	100~400	100	50	±1.25	11/18	40	28/32
21	XSTM10040053200W	100~400	200	53	±1.25	11/18	40	28/32
22	XSTM1005204750W	100~520	50	47	±1.2	12/20	30	28/32
23	XSTM10052050100W	100~520	100	50	±1.2	12/20	30	28/32
24	XSTM10052052150W	100~520	150	52	±1.0	11/15	35	28/32
25	XSTM10052053200W	100~520	200	53	±2.0	11/15	30	48/50
26	XSTM10052055300W	100~520	300	55	±2.0	11/15	35	48/50
27	XSTM10052056400W	100~520	400	56	±2.0	11/15	30	50/53
28	XSTM10052057500W	100~520	500	57	±2.0	11/15	30	50/53
29	XSTM10052058600W	100~520	600	58	±2.0	11/15	30	50/53
30	XSTM100520601000W	100~520	1000	60	±2.0	11/15	30	50/53
31	XSTM1006050100W	100~600	100	50	±3.0	11/15	30	28/32
32	XSTM1008004750W	100~800	300	47	±2.0	11/15	25	28/50
33	XSTM100100050100W	100~1000	500	50	±2.0	11/15	25	48/50
34	XSTM10013004860W	100~1300	60	49	±2.0	11/15	23	48/50
35	XSTM2255124750W	225~512	50	47	±2.0	11/15	30	48/50
36	XSTM22551250100W	225~512	100	50	±2.0	11/15	35	48/50
37	XSTM22551253200W	225~512	200	53	±2.0	11/15	35	48/50
38	XSTM30050057500W	300~500	500	57	±2.0	11/15	35	48/50
39	XSTM4007004010W	400~700	10	40	±2.5	11/15	30	24/28
40	XSTM40047050100W	400-470	100	50	±1.5	12/15	25	24/28
41	XSTM47008604750W	470~860	50	47	±2.0	11/15	30	24/28
42	XSTM470086050100W	470~860	100	50	±2.0	11/15	30	28/32
43	XSTM470086053200W	470~860	200	53	±2.0	11/15	30	28/48
44	XSTM47086055300W	470~860	300	55	±2.0	11/15	30	48/50
45	XSTM500100053200W	500~1000	200	53	±2.0	11/15	25	28/32
46	XSTM600130048060W	600~1300	60	48	±2.0	11/15	25	28/32
47	XSTM600130050100W	600~1300	100	50	±2.0	11/15	25	28/32

功能性的选择：有过温、过压、过输出驻波保护，有工作温度，工作电流、正反向输出功率检波电压输出。
