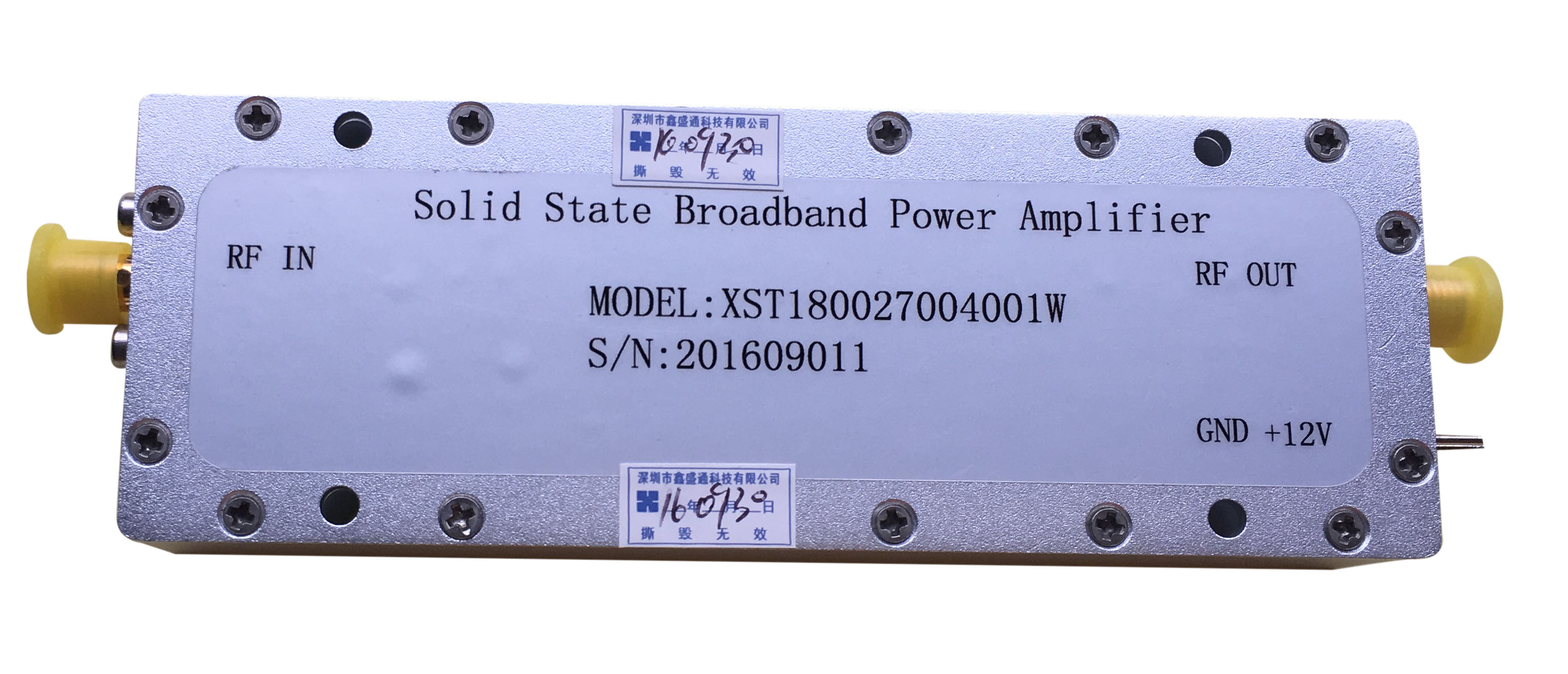

RF&MW Solid State Broadband Power Amplifier Modular

射频&微波固态宽带功放器块（UHF\L \S(0.5GHz-6GHz)系列固态宽带功率放大器模块）

序号Serial number	产品型号 Model Number	工作频率BW GHz)	输出功率 PSat(W)	增益Gain Typ. (dB)	平坦度Flatness(dB)	奇/偶次 Odd/Even(dBc)	效率Eff Typ(%)@ PSat	工作电压Voltage(V)	Photo
1	XSTM3030004010W	0.03~3.0	10	40	±2.5	12/15	20	24/28
2	XSTM20020004750W	0.225~2.0	50	47	±2.5	12/15	25	24/28
3	XSTM20025004320W	0.225~2.5	20	43	±2.5	12/15	20	24/28
4	XSTM50025004320W	0.5~2.5	20	43	±1.5	12/15	20	224/28
5	XSTM50030004215W	0.5~3.0	15	42	±2.0	12/15	20	12/24
6	XSTM50030004640W	0.5~3.0	40	46	±2.0	12/15	25	24/28
7	XSTM500300050100W	0.5~3.0	100	50	±2.0	12/15	25	28/32
8	XSTM500300053200W	0.5~3.0	200	53	±2.0	12/15	25	28/32
9	XSTM10002004215W	1.0~2.0	15	42	±1.2	12/15	25	24/28
10	XSTM100020004320W	1.0~2.0	20	43	±1.5	12/15	25	24/28
11	XSTM100020004640W	1.0~2.0	40	46	±1.5	12/15	28	28/32
12	XSTM100020004860W	1.0~2.0	60	48	±1.5	12/15	20	28/32
13	XSTM100060004215W	1.0~6.0	15	42	±2.5	12/15	20	28/32
14	XSTM100060004530W	1.0~6.0	30	45	±2.5	12/15	20	28/32
15	XSTM150060004750W	1.5~6.0	50	47	±2.5	12/15	20	28/32
16	XSTM100030004860W	1.0~30	60	48	±1.5	12/15	25	28/32
17	XSTM200040004860W	2.0~4.0	60	48	±1.5	15/20	25	28/32
18	XSTM180027004425W	1.8~2.7	25	44	±1.5	15/20	25	28/32
19	XSTM180027004750W	1.8~2.7	50	47	±1.5	12/15	25	28/32
20	XSTM1800270050100W	1.8~2.7	100	50	±1.5	15/18	25	28/32
21	XSTM270035004530W	1.8~3.5	30	45	±1.5	15/18	25	28/32
22	XSTM310036004750W	3.1~3.6	50	47	±1.0	15/18	20	28/32
23	XSTM440050004530W	4.4~5.0	30	45	±1.5	15/18	25	28/32
24	XSTM515058504215W	5.15~5.85	15	42	±1.5	15/18	20	28/32
25	XSTM515058504530W	5.15~5.85	30	45	±1.5	15/18	20	28/32
26	XSTM220027004750W	2.2~2.7	50	47	±1.5	15/18	25	28/32
27	XSTM570059004750W	5.7~5.9	50	47	±1.0	15/18	25	28/32
28	XSTM5700590050100W	5.7~5.9	100	50	±1.0	15/18	25	28/32
29	XSTM5700590053200W	5.7~5.9	200	53	±1.0	15/18	25	28/32

功能性的选择：有过温、过压、过输出驻波保护，有工作温度，工作电流、正反向输出功率检波电压输出。
